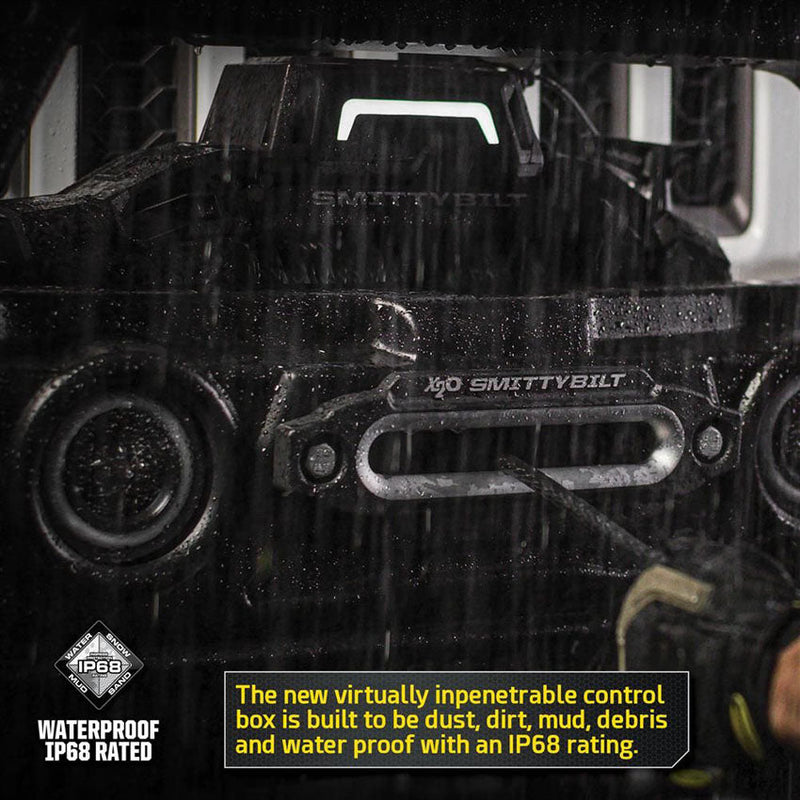

- Waterproofing: IP68 Rating
- Rated Line Pull: 10,000Lbs (4,545kgs) Single Line
- Motor: 7hp Series Wound
- Control: Remote Switch, 12' (3.7m) lead
- Gear Train: 3-Stage Planetary
- Gear Ratio: 185:1

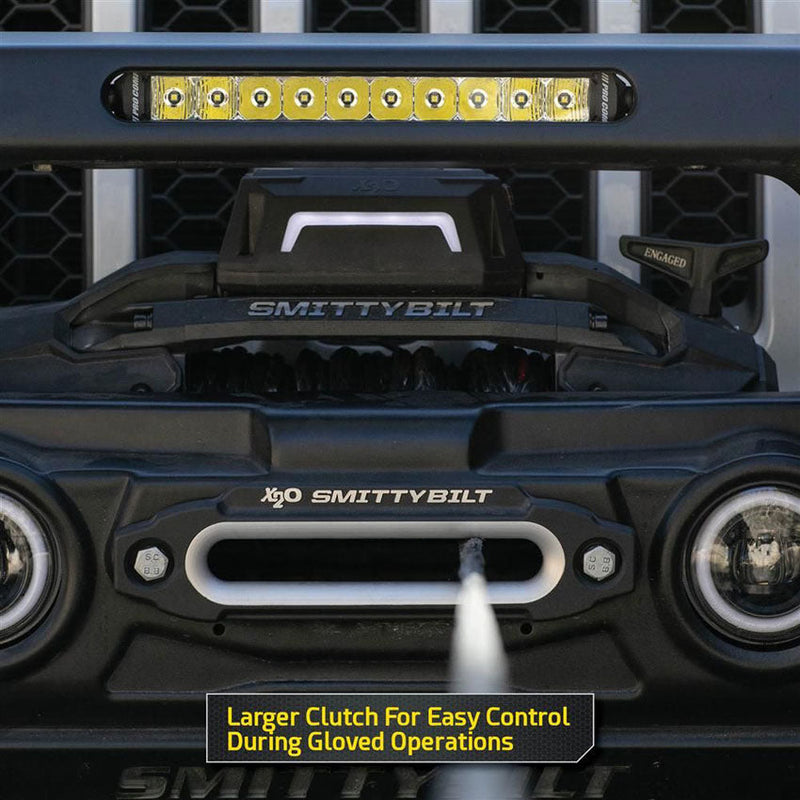

- Clutch: Sliding Ring Gear
- Brake: Automatic Out-Of-Drum
- Drum Size: Diameter 2.5"
- Cable: 98.5' 3/8" Diameter
- Cable Type: Synthetic Rope

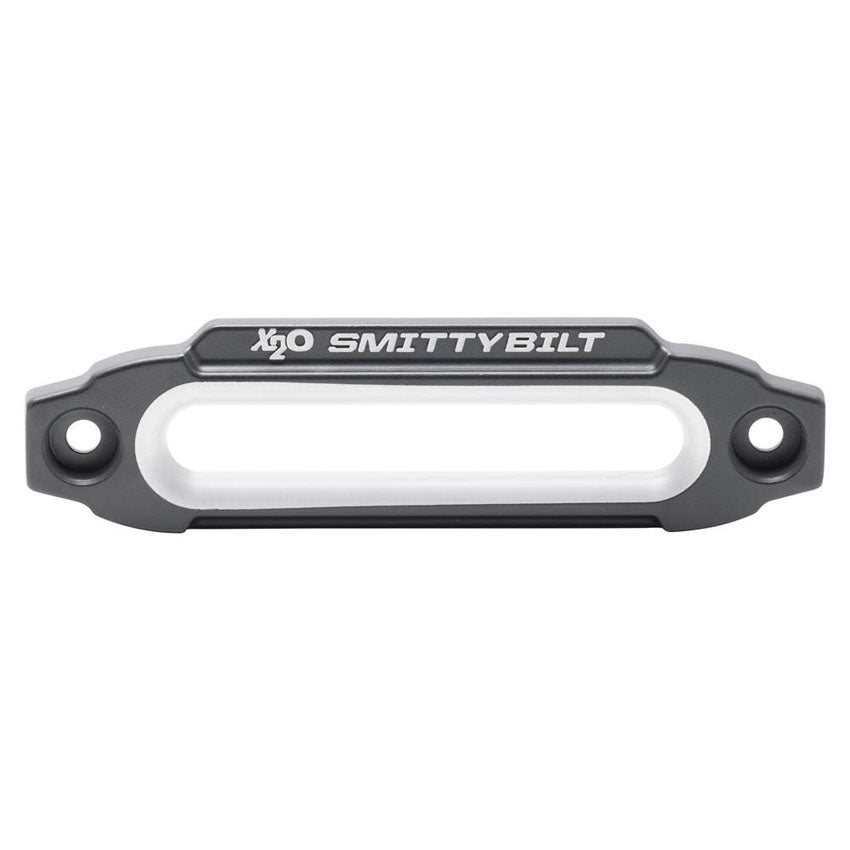

- Fairlead: Hawse
- Remote Control: Included
- Integrated Wireless Remote
- Recommended Battery: 650CCA Minimum for Winching
- Battery Leads: 25mm2, 72"(1.83m)1
- Finish: Textured Black
- Weight: 76.0Lbs (30.4Kgs)
- Mounting Bolt Pattern: 10.0" x 4.50"
- Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"

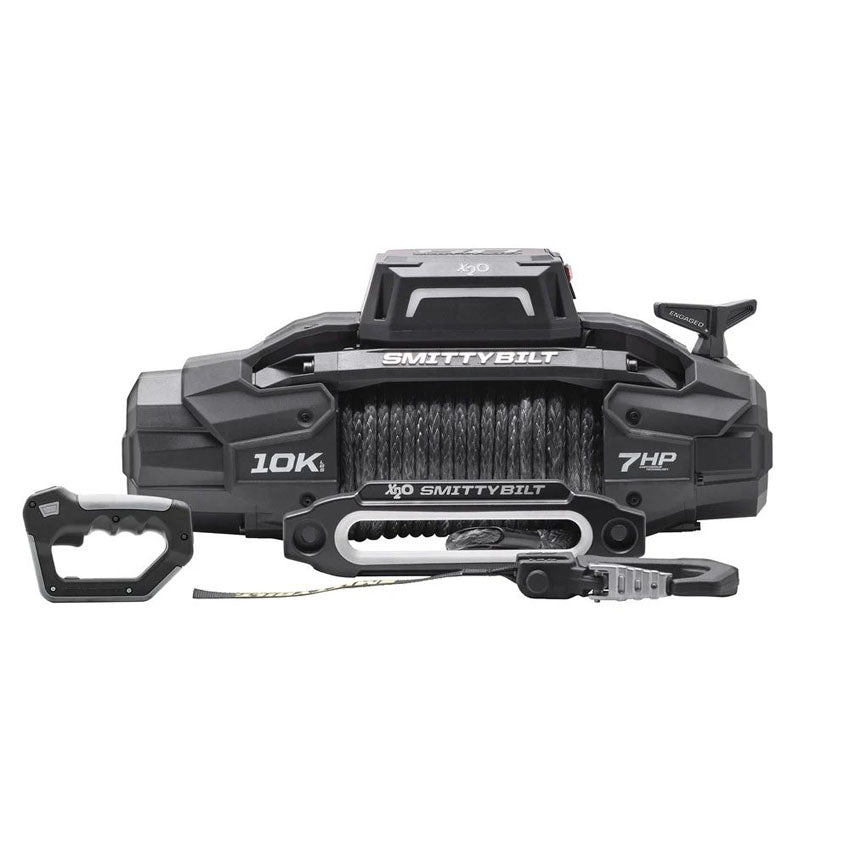

10K Smittybilt X20 W/ Synthetic Rope GEN3
Great Choice for our Octane, Attitude, Or Prolite Series Bumpers

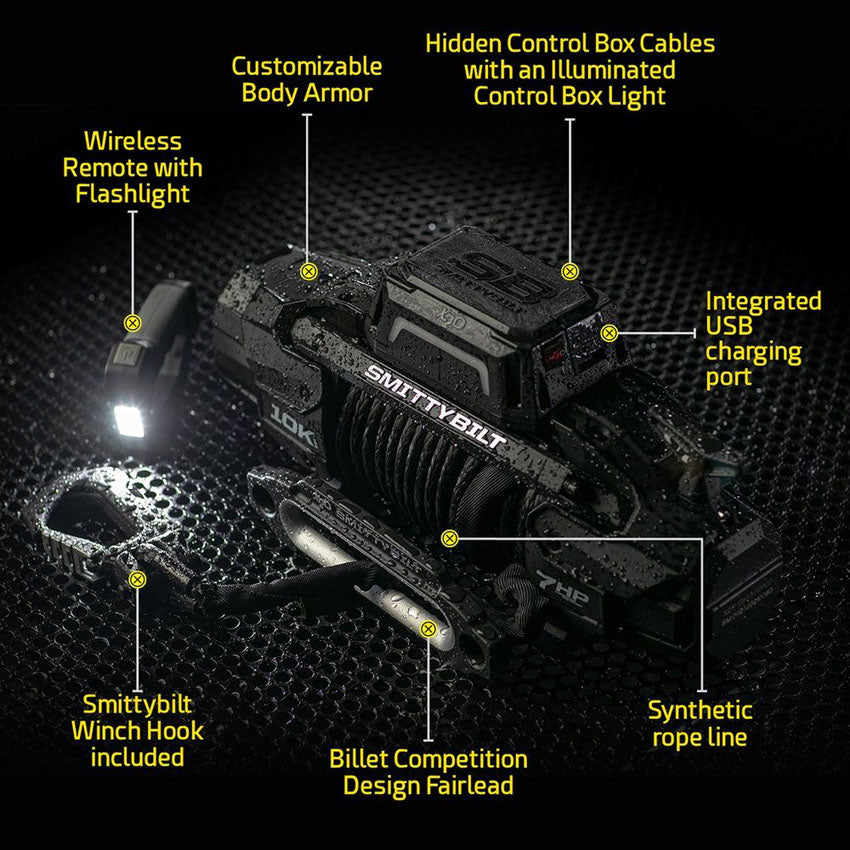

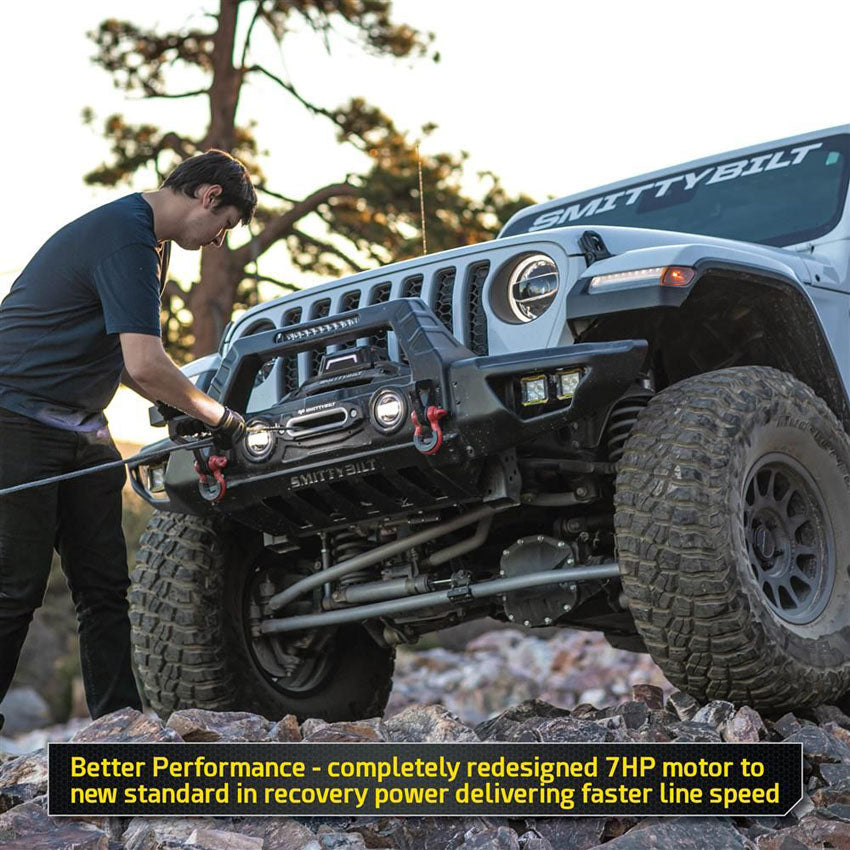

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears. The X2O line features a completely waterproof 500 AMP control box that can be mounted in 2 different locations.

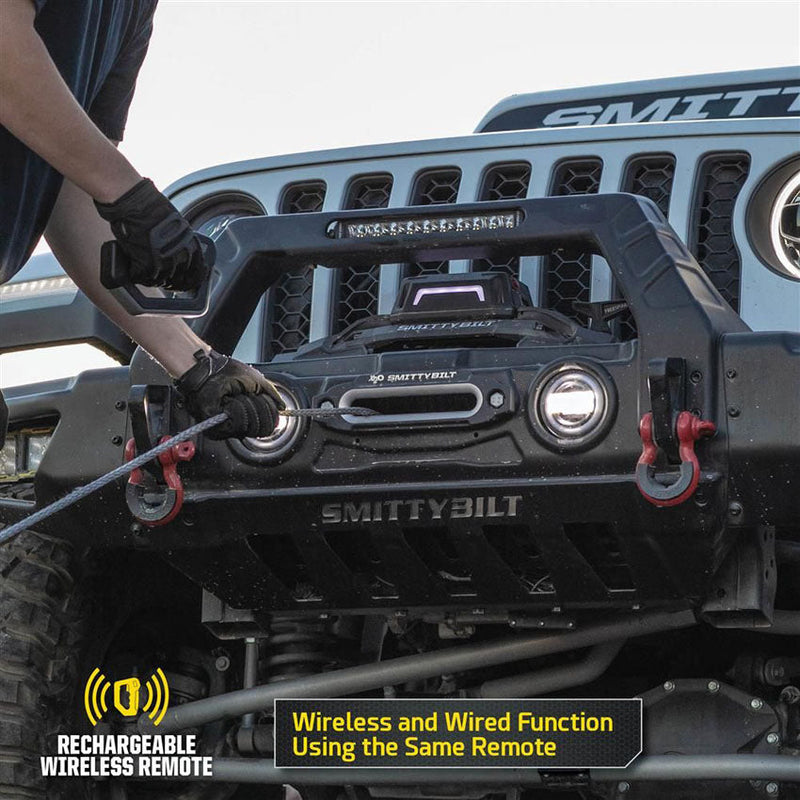

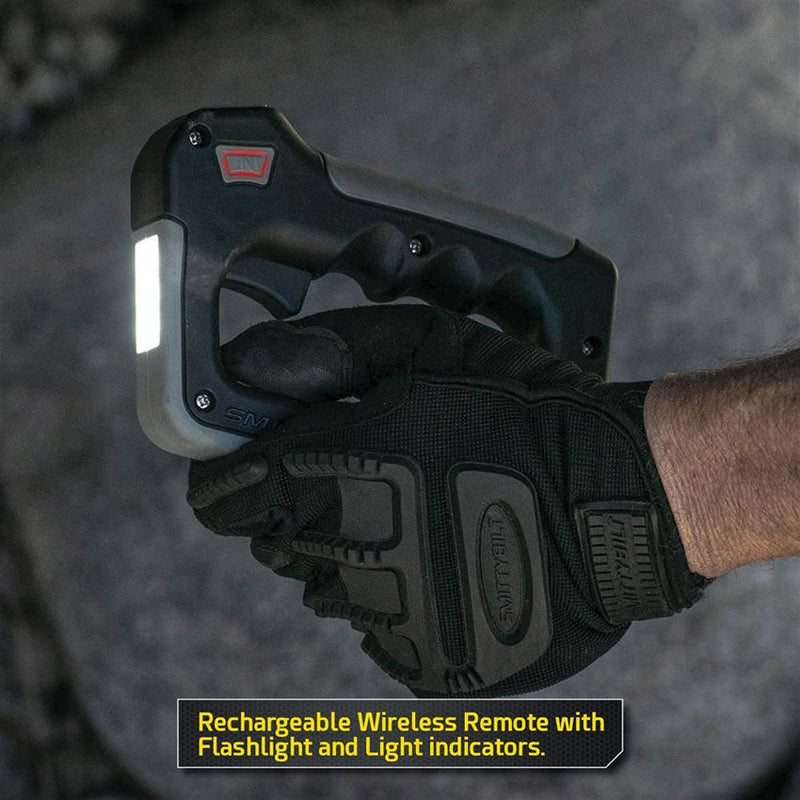

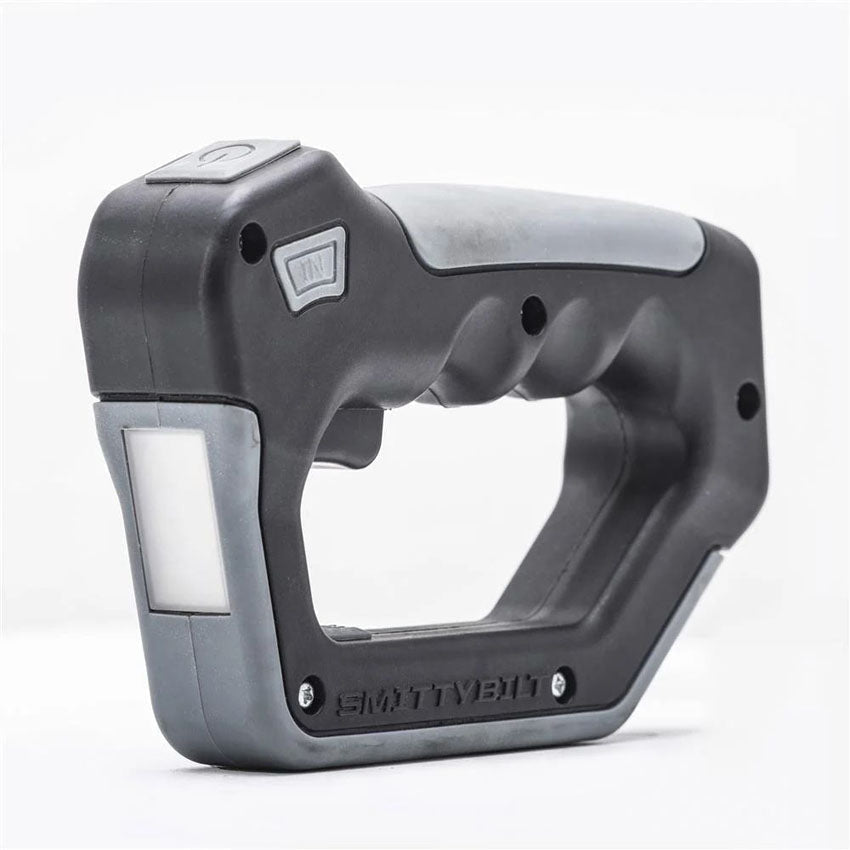

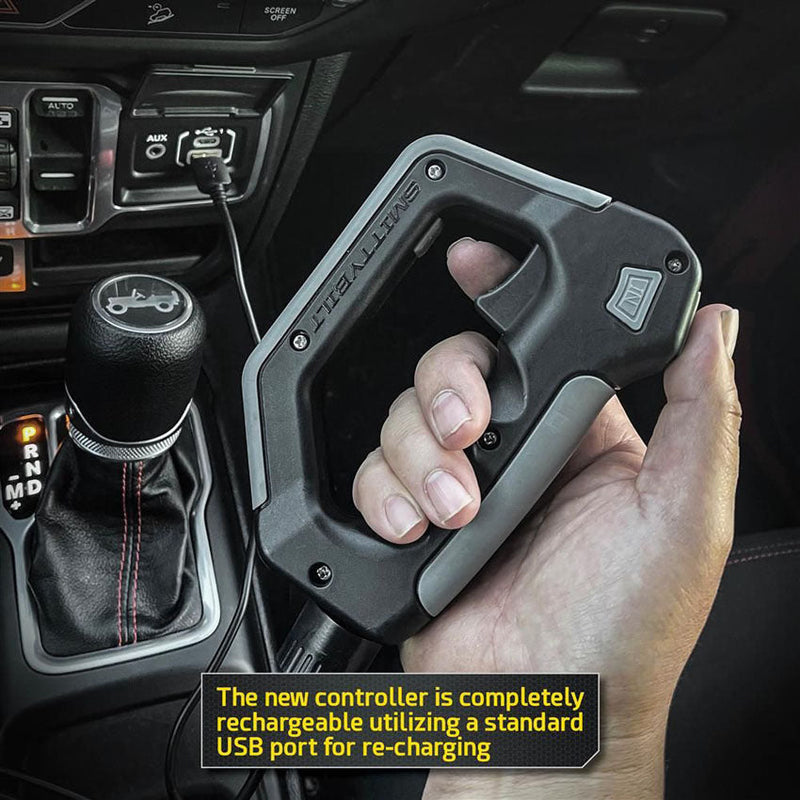

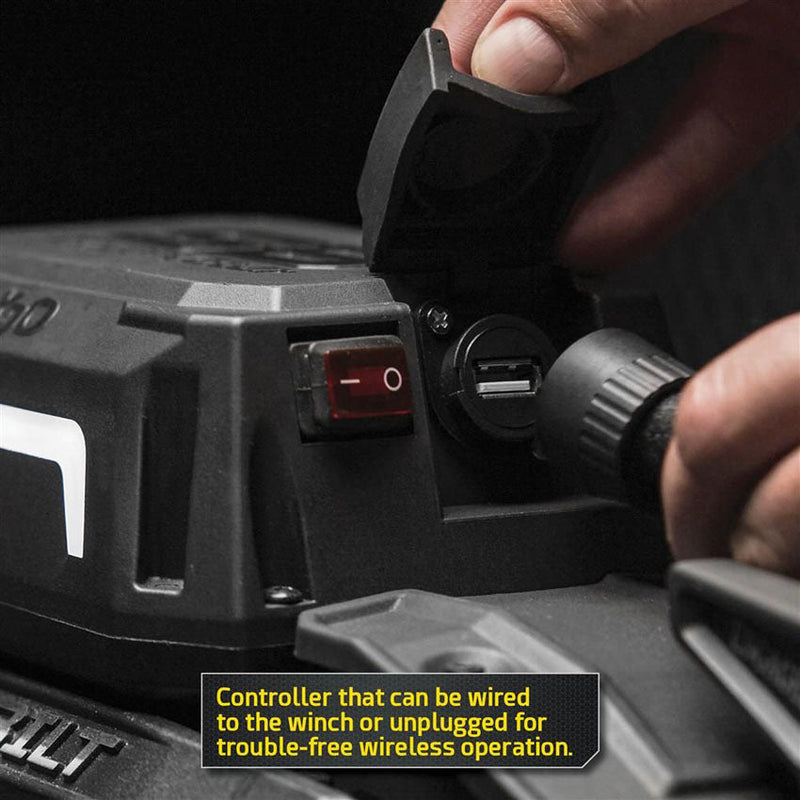

All-new wireless controller with USB connectivity that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. The X2O series comes standard with a synthetic winch rope for maximum performance.
