Diablo

Series Front Bumper

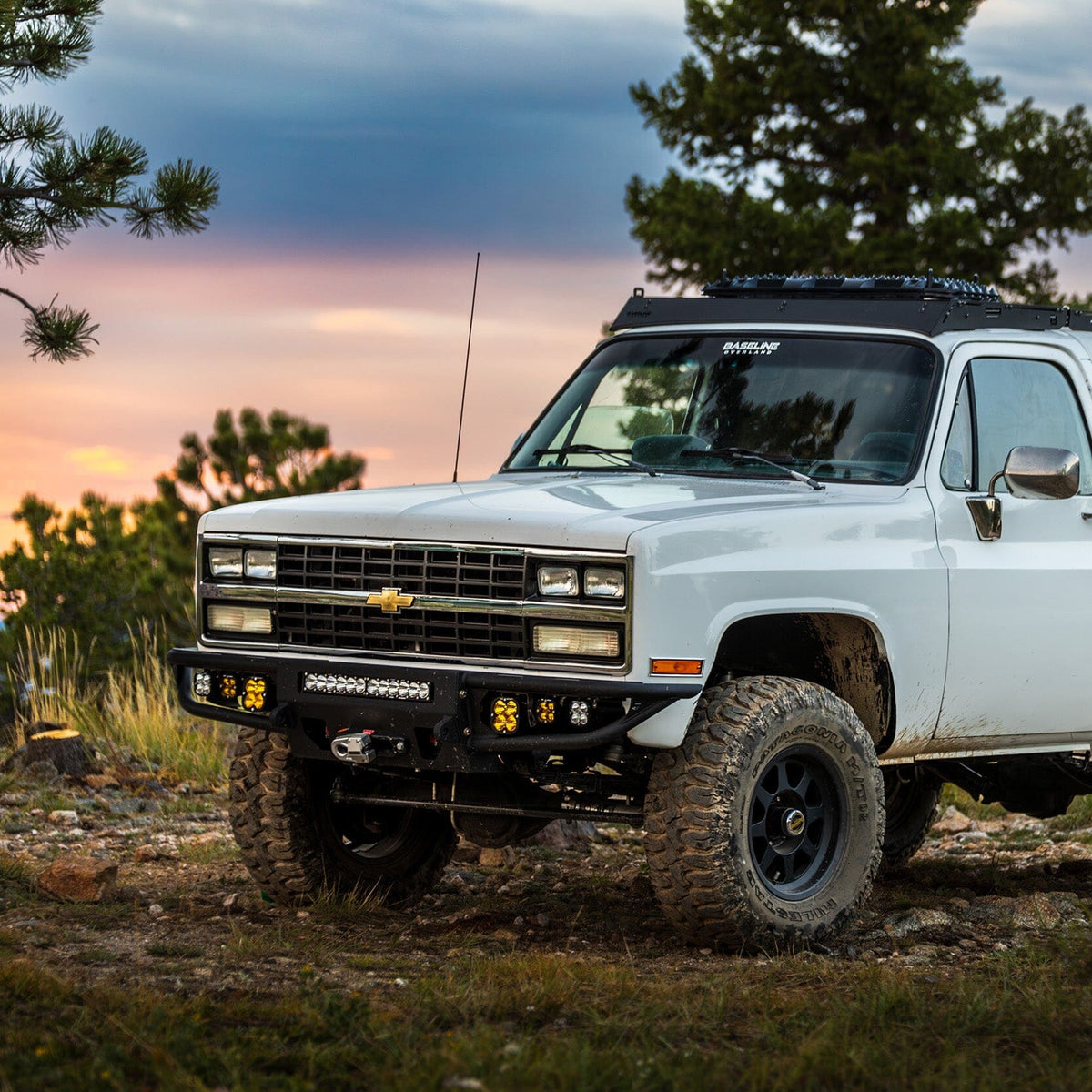

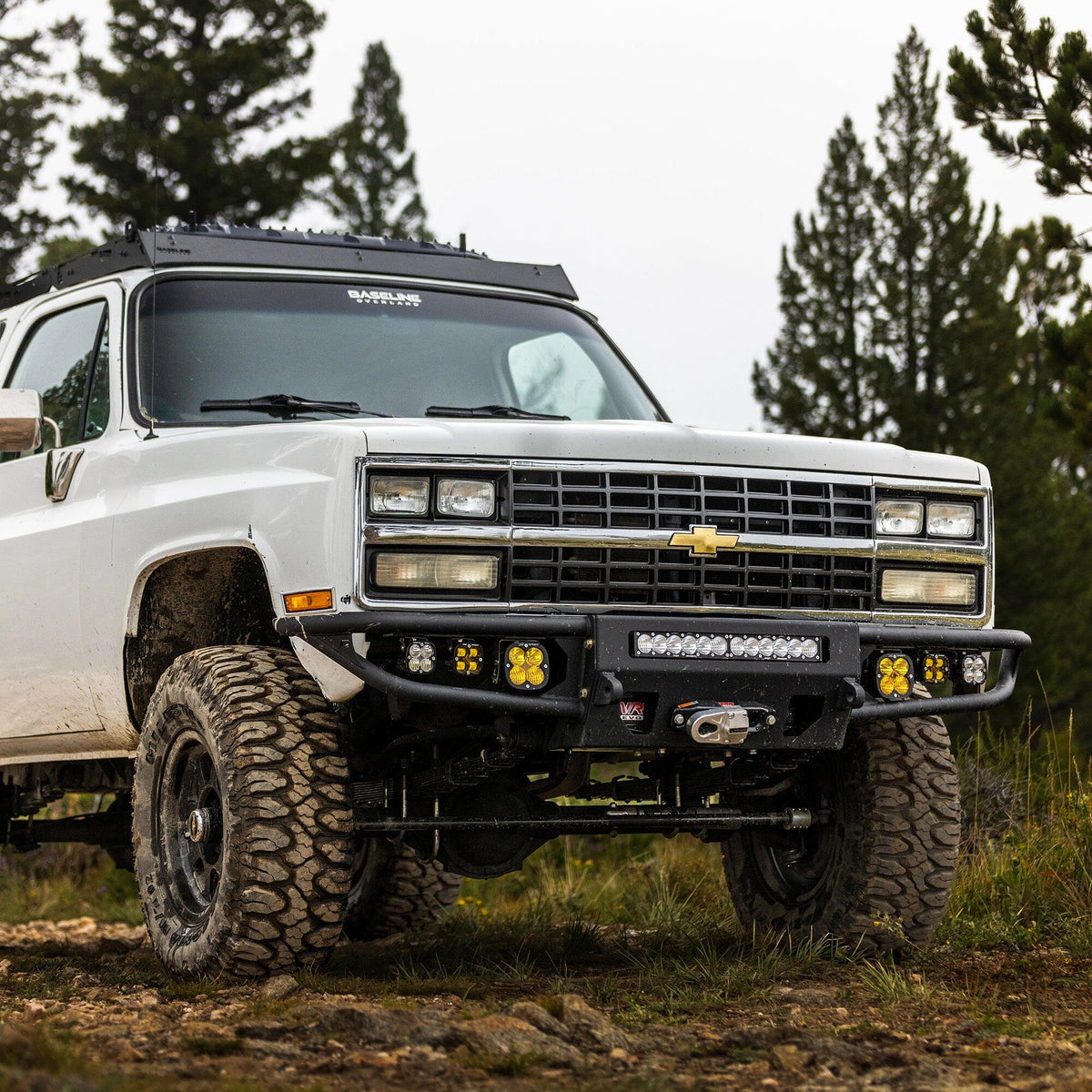

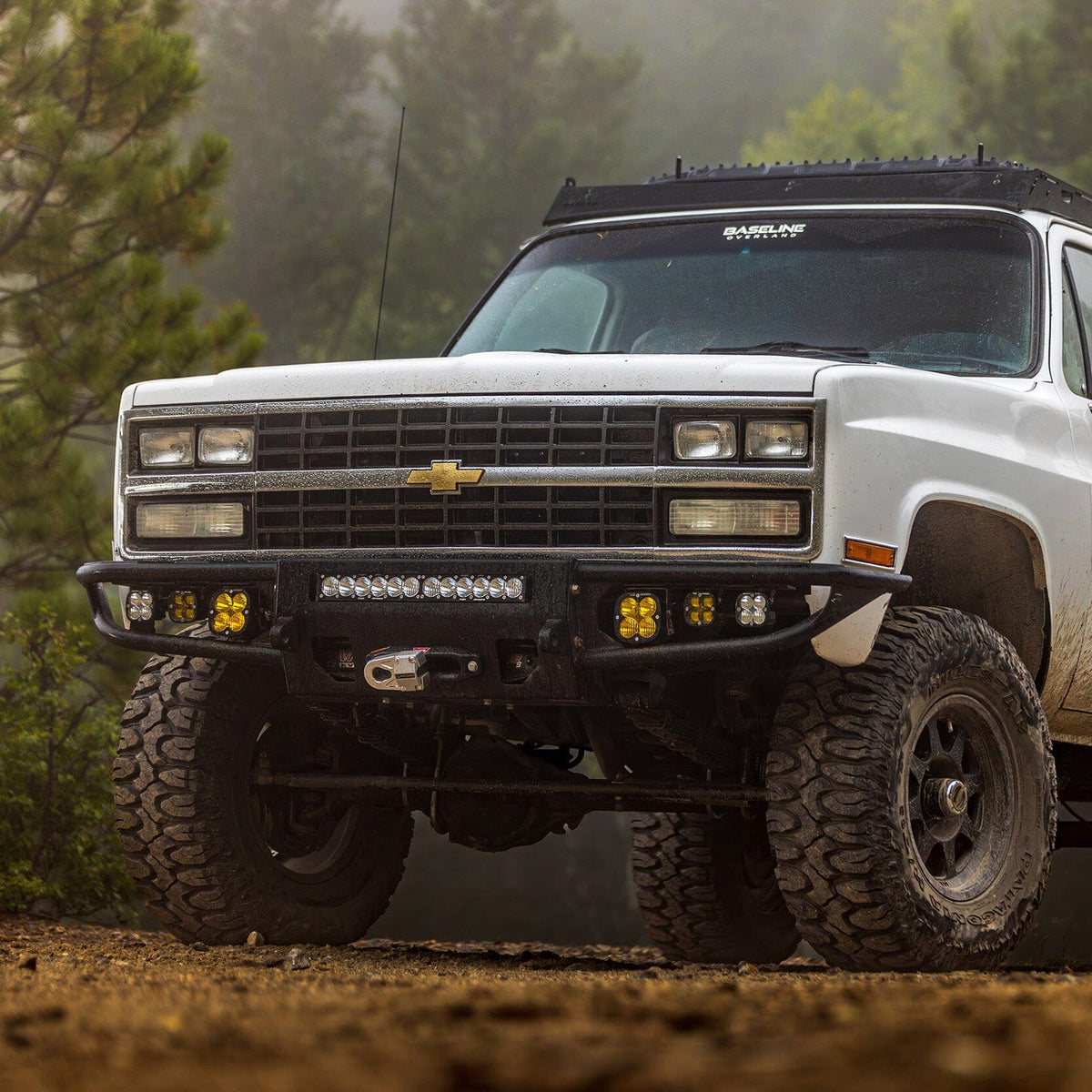

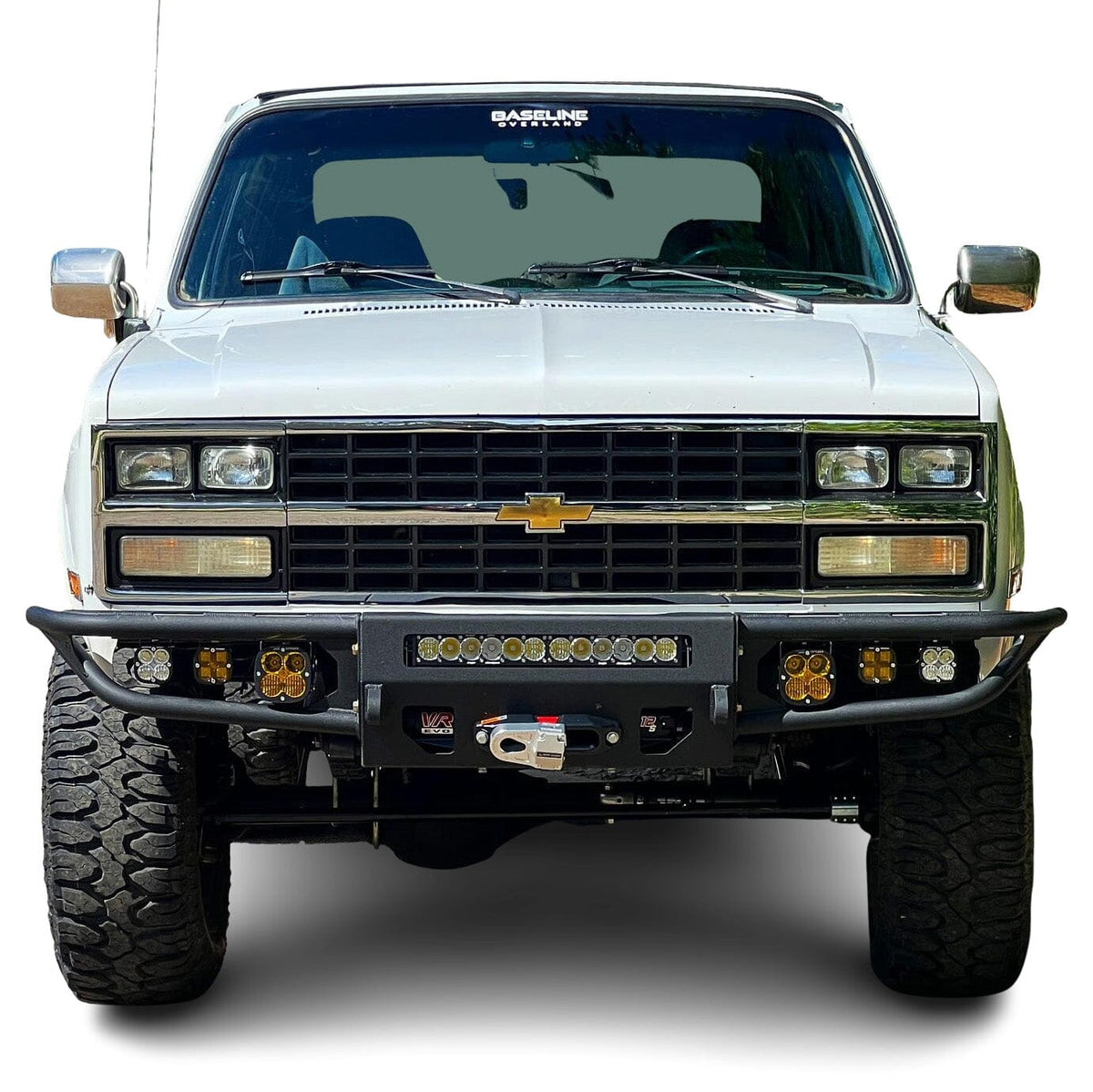

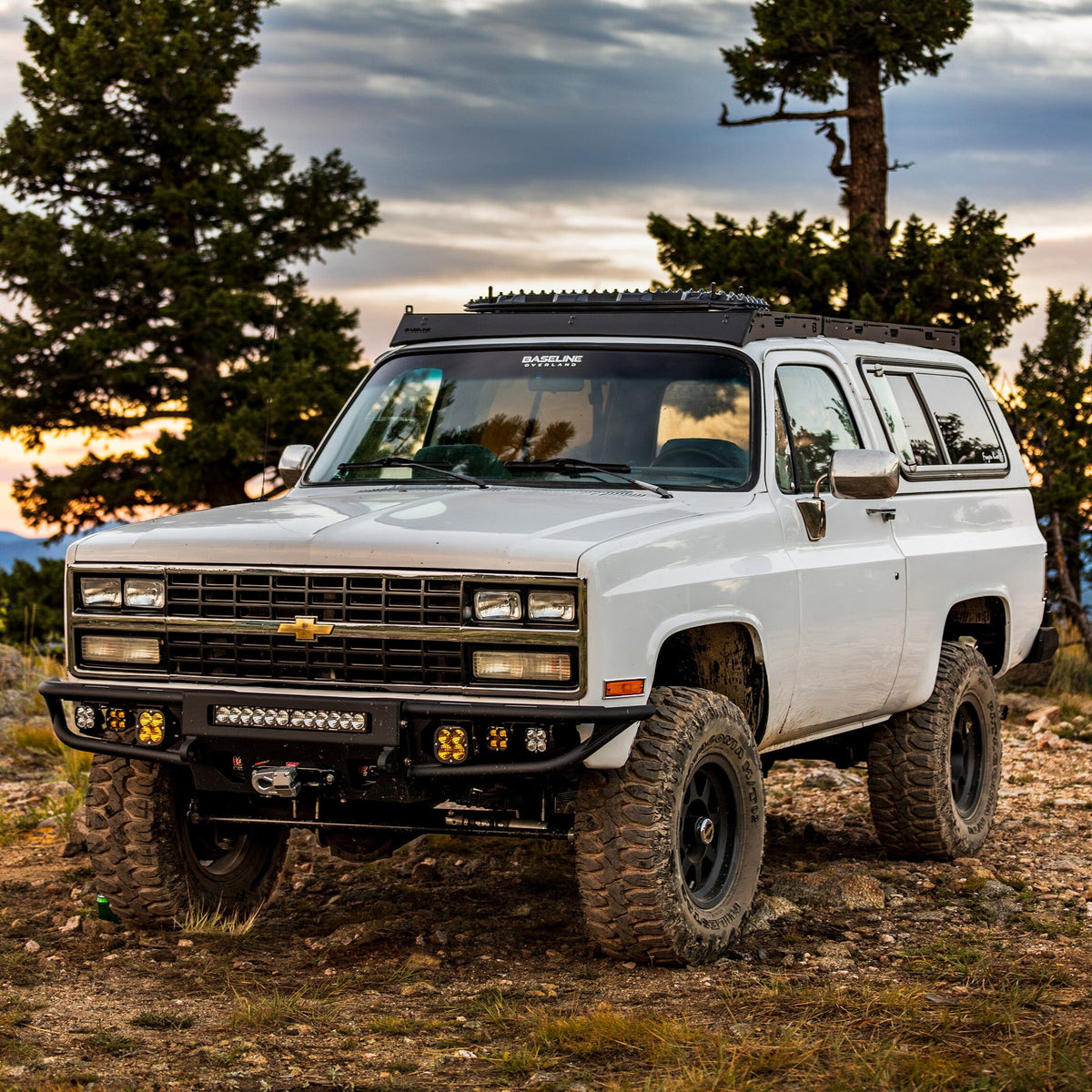

1973-1991 CHEVY/GM FRONT DIABLO WINCH BUMPER

Regular
$1,578.99
Sale
$1,578.99
Regular
Sold Out
Unit Price
per

Bumper Finish

SKU CUB950291
WEIGHT 90.0 LBS

Product Features

  • Heavy Duty 3-Piece Modular Design W/ CNC Bent & Laser Cut Tubular Outer Wings
  • Manufactured from 3/16” USA Steel
  • Room for up to a 12,000 LB Winch + Recessed winch fairlead opening
  • Light mounting brackets for 20” curved/straight dual row LED Light bar, or Six 3” LED cube lights
  • Each side of the bumper has mounting brackets in the outer wing for Three 3” LED Cube Lights (6 total)
  • Includes heavy duty CNC Machined 1” Thick recovery points with a 1” Bore
  • Installation Hardware & Instructions
  • ALL LIGHTS & WINCH SOLD SEPARATELY

Product Details

The Diablo Series takes the best features from our most popular selling bumpers and combines them together in the ultimate Baja style package! Our Diablo front bumper offers room for a 12,000 LB Winch with top access for freespool/rope guide access, and room for a 20" Lightbar! Featuring outer Baja style tubular wings and a curved/radius center plate section- this Bumper covers all your off-road needs while still matching the profile of your truck! The bumper also covers the entire bottom side of your lower intercooler/radiator ensuring you don't damage critical components of your truck. We also integrated factory parking sensor locations to retain your truck's features so you don't have to choose a style, over features, and ease of use.

Diablo bumpers are designed and manufactured entirely in the USA, from USA 3/16” Steel plate & Feature Laser cut / CNC Formed Tubular outer wings and 3 stage powder coated with our high-quality texture black powder.

The Diablo Series Front Bumper is designed around each truck model specifically to contoured and curved to the front clip like the factory bumper while allowing heavy-duty design and features to be added. The Diablo Bumpers feature room for up to a 12,000 LB Winch with our Recessed Fairlead opening, Center 20” Curved or Straight Dual Row Light Bar, and six recessed 3” Cube Lights in the outer wing sections of the bumper.

Additionally, in place of the Center light bar, six 3” Cube lights may be used instead, mounting provisions are available in the bumper for both style lights. The bumper is a modular 3-piece design where the bumper bolts together using ½” Grade 8 Hardware- Allowing us to create an extremely strong product that is fully customizable and replaceable.

The Diablo Series Bumper looks excellent with or without a winch installed and is not required for use.

THE SQAURE BODY DIABLO ONLY USES A 20" CURVED OR STRAIGHT LIGHT BAR.

LED LIGHTS AND WINCH ARE NOT INCLUDED.

This Bumper will fit any square body truck from 1973 to 1991 Including K5 Blazer, GMC Jimmy, Sierra, K1500, K2500, K3500, & Suburban

FITS MODEL YEARS 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

top of the line

Baja Style Tubular Bumper

Welcome to the Diablo Series! The industry's first Baja inspired modular front bumper designed around functionality and hardcore abuse. We have developed our Diablo front bumpers to give the most aggressive center section- along with tubular outer Baja inspired wings. You wont find a similar winch bumper on this planet.

Packed full of features

Winch & light bar combo bumper

When we designed the Diablo series front bumpers- we wanted to make sure we checked all the boxes that would make our product usable in any situation. First off, we wanted every one to be able to see as far as possible into the dark desert nights: So we loaded this bumper with lighting options! Plus , we packaged it all with a mount for up to a 12,000 LB winch- along with a BEEFY skid plate system protecting your lower radiator/intercooler area.


Plus, All Diablo Bumpers come with our texture black powder coating.

lets talk details

full functionality

Sure, there's some Baja style bumpers on the market- That also feature tube type outer wings. But lets be honest, We need functionality: the Diablo Series works PERFECTLY with your factory parking sensors, blind spot monitor systems, Adaptive Cruise Control, as well as provides ample cooling flow for the heavy loads we pull with our diesel trucks.

proudly manufactured

100% IN THE USA

Chassis Unlimited proudly manufactures all of our products right here in the USA. You can expect the highest quality products, and cutting edge designs- as we complete every process from concept to production in our state of the art manufacturing facility in Tracy California. We pride our company on amazing quality products, with a guaranteed look you wont find else where.
