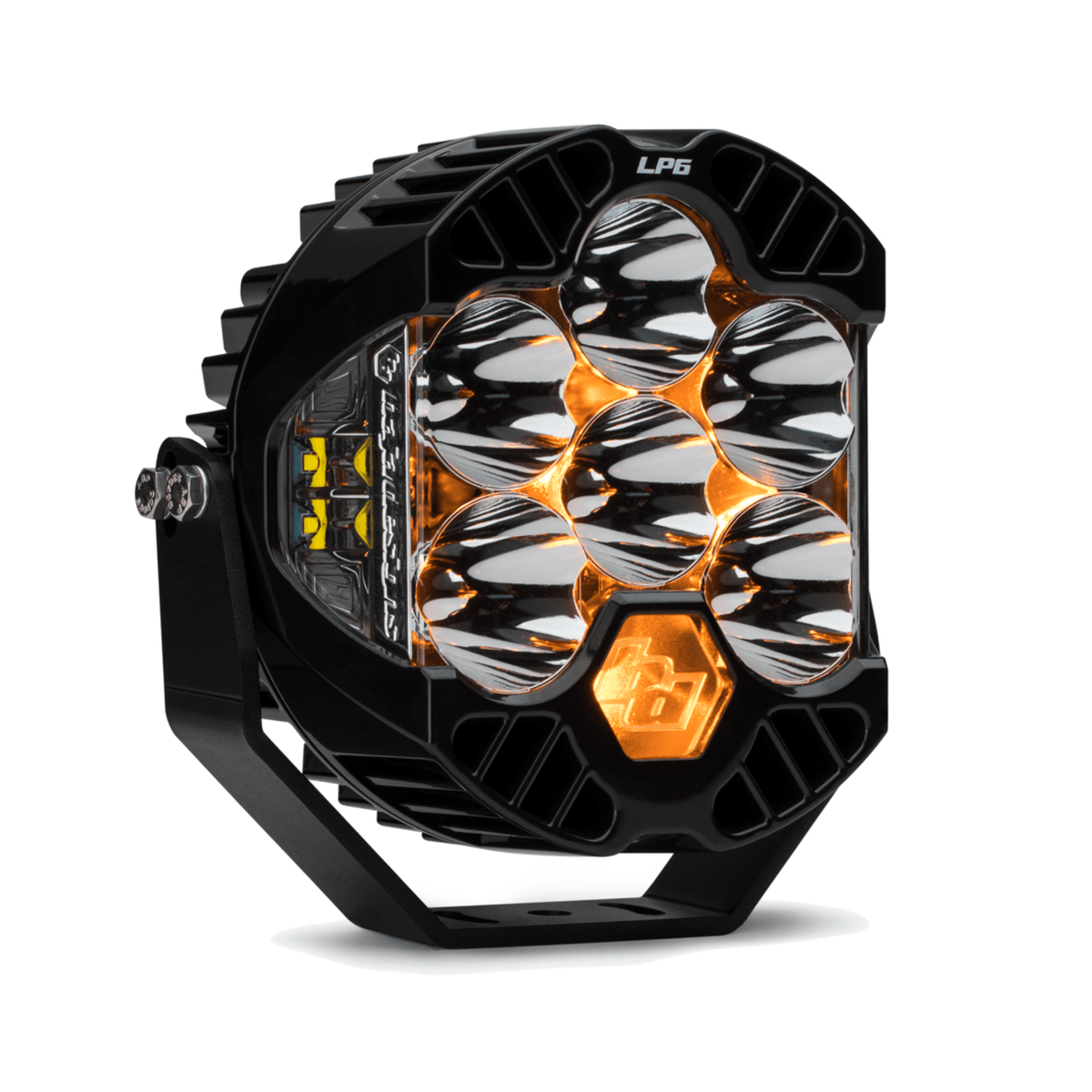

BAJA DESIGNS LP6 PRO LED AUXILIARY LIGHT POD - AMBER BACKLIGHT
SKU
BD-270001
WEIGHT
2.0 LBS
Product Details
The Baja Designs LP6 lights fit perfectly with our HD Chase Light mount.
The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.
Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.
WIRING HARNESS SOLD SEPARATELY!
LIGHTS SOLD INDIVIDUALLY!
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 103.500 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 7.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.300 |
| Backlight Wattage (W) | 4.140 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 11225 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 6.500 |
| Length (in.) | 6.500 |
| Weight (lbs.) | 4.200 |
